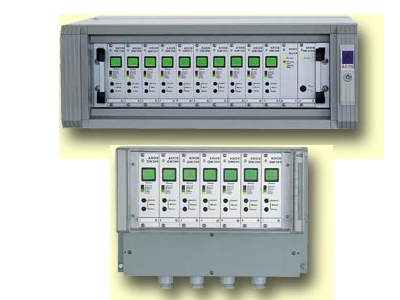

Gas monitor unit- GW399

The multi-channel gas warning system GW 399 continuously monitors the ambient air and provides an early warning of hazardous, explosive and non-combustible gases and vapours.
  • 技術參數
  • 產品特點
  • 應用領域
  • 資料下載
Measurable gases

Gas Formula
Acetylen C2H2
Ether C4H10O
Alcohol e.g. C2H6O
Ammonia NH3
Petrol


Butane C4H10
Chloroform CHCl3
Hydrogene chloride HCl
Helium He
Carbon dioxide CO2
Carbon monoxide CO
Methane (natural gas) CH4
Neon Ne
Propane C3H8
Oxygen O2
Carbon tetrachloride CCl4
Toluene C7H8
Hydrogen H2
Xylene C8H10


Technical Data

Details as for control unit
Sensors: Semiconductor sensor
Heat reaction sensor
Thermal conductivity sensor
Chemical sensor
Infrared sensor
Sensors input: 1 two-wire sensor (e. g. TOX 592) or 1 three-wire sensor (e.g. GTR 196)
Sensor supply: 20 V DC / 200 mA
Ranges: Adaptable by software
Accuracy: < 2 %, f.s.d.
Ambient temperature: -10 °C to +40 °C
Temperature effects: < 2 % for a ±20 °C change
Installation: Panel mounting or wall-mounting
Output signals: Current output 4-20 mA
RS 232 or RS 485 interface
LON®-Interface
3 Alarm relays
1 Fault relay
Relay rating: 230 V, 450 VA
other voltages on request
Voltage supply: 230 V, 50 Hz
Options: 115 V, 60 Hz | 24 V DC | 12 V DC

Power consumption: 8 VA
  • Use of various types of measurement sensor
  • Direct warning status recognition, via different colors of the LC-Display background illumination
  • Menu-aided operation, via 2 keys
  • Three alarm thresholds individually adjustable from 5-100% of test range
  • Three floating alarm outputs for driving additional warning and control systems
  • Floating relay contacts
  • Serial output, RS 232 or RS 485 LON®-interface
  • 4-20 mA current output
  • Different housings are available e. g. 19" rack,
    panel mounting, wall-mounted housing
  • Up to 10 units per rack
  • 1 control unit configurable as master, for supervision of central alarms and communication control systems
  • High degree of reliability
  • Low current consumption
  • Possibility of uninterruptible power supply
  • Monitoring of heating systems
  • Garages and tunnels
  • Liquid gas rooms
  • Laboratories
  • Cold storage houses and air conditioning plants
  • Plastic processing plants
  • Chemical industries
  • Paint manufacturing plants
  • Concentration measurement of O2
  • and many more
